EF25/7.2 Type
Technical data
● Typical switching frequency 500KHz Max.
● Operating temperature range:-10℃～115℃
● Normal inductance at 10KHz,1Vac,25℃
● Inductance tolerance ±5% at gapped core,±30% at ungapped core
● Customer-specific types on request
Application
● Standby transformers,line filters,inductors,etc.
● Ballast,switching power supply,etc.
● RoHS Compliance
Design EF25/7.2
● Core:EF25/7.2
● Coil former:see below information

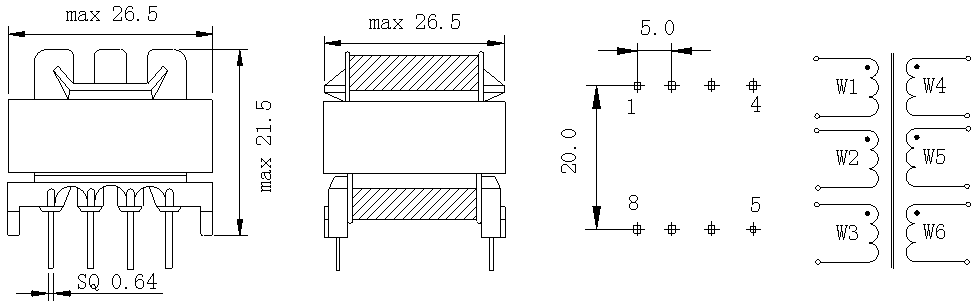

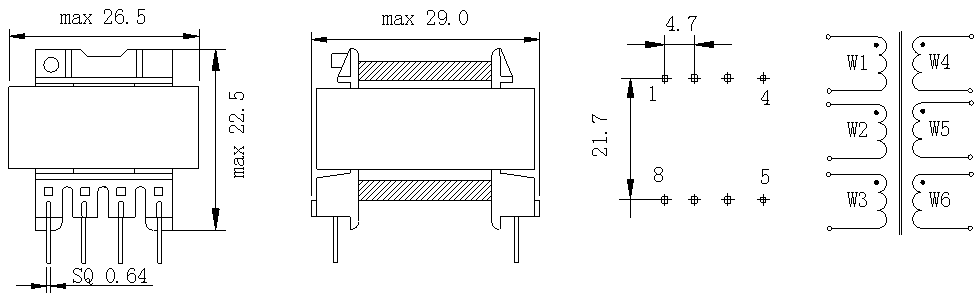

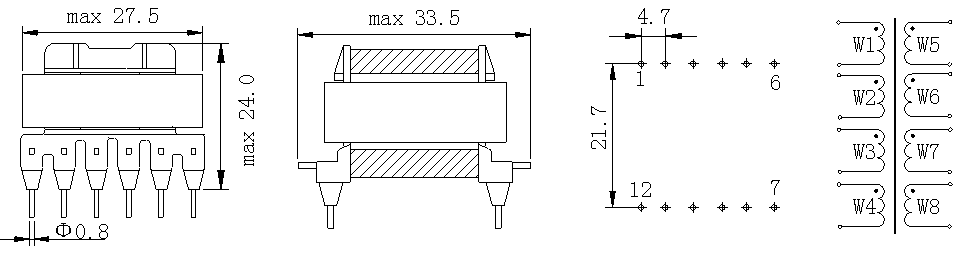

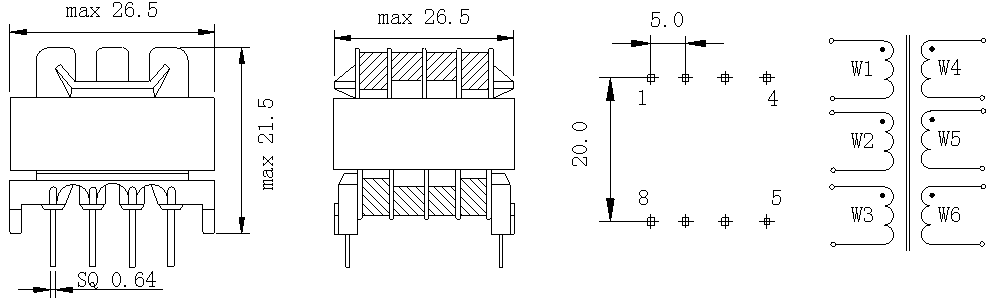

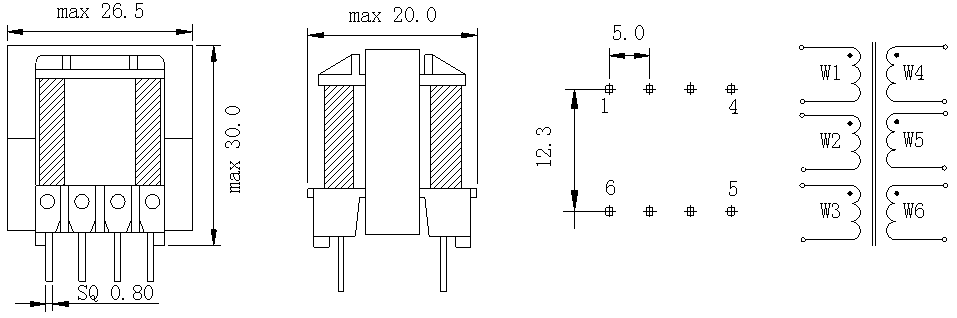

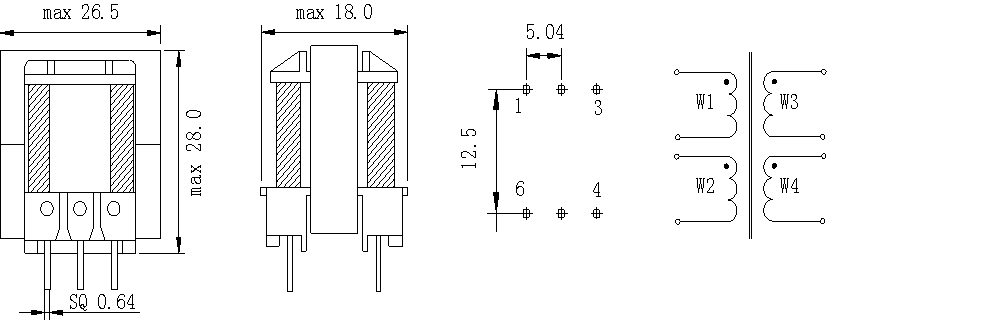

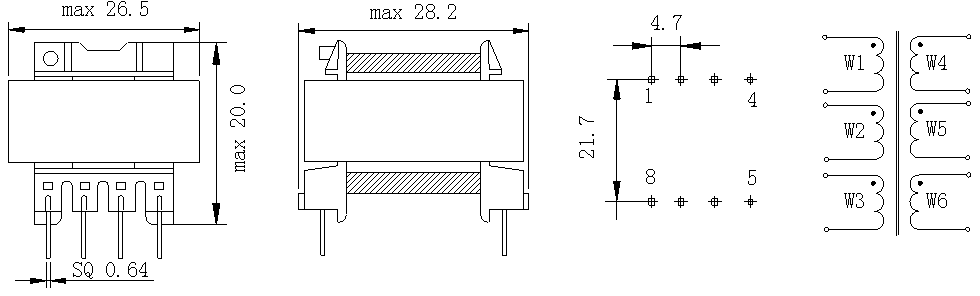

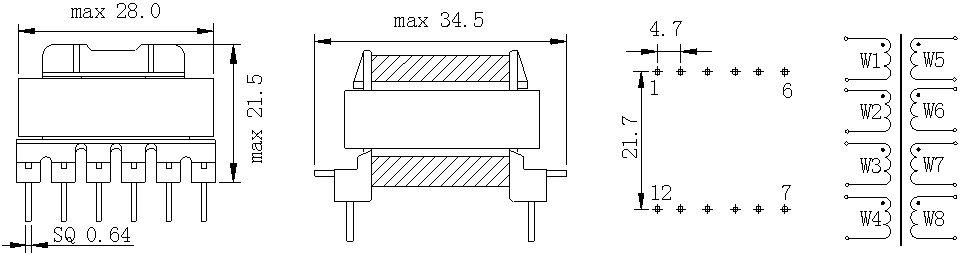

Typical configuration & dimensions & Circuit Diagram
